Mesurement:
Measurement Principle: Dual-beam spectrophotometer
Geometries: Directional annular 45° illumination / 0° viewing (specular component excluded)
Spectrophotometer: 256 element diode array and high resolution, concave holographic grating
Port Diameters/View Diameters

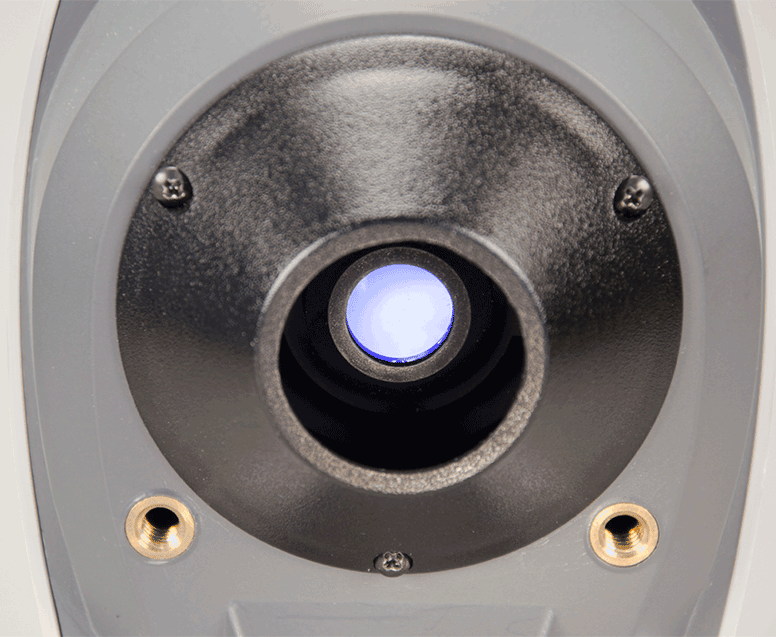

45°/0° models: LAV 31.8 mm (1.25 in) illuminated/25.4 mm (1 in) measured
Specular Component: Excluded on 45°/0° models
Spectral Range: 400 nm - 700 nm
Spectral Resolution: < 3 nm
Effective Bandwidth: 10 nm equivalent triangular
Reporting Interval: 10 nm
Photometric Range: 0 to 150 %
Light Source: Pulsed Xenon Lamp
Flashes per Measurement: 1 flash
Lamp Life: > 1 million flashes
Measurement Time: < 1 second from button push to measurement 2 seconds from button push to data display
Minimum Interval between Measurements: 3 seconds
Standards Conformance: CIE 15:2004, ISO 7724/1, ASTM E1164, DIN 5033 Teil 7 and JIS Z 8722 Condition C
Standards Traceability: Instrument standard assignment in accordance with National Institute of Standards and Technology (NIST) following practices described in CIE Publication 44 and ASTM E259
|
|
Mesurement:
Measurement Principle: Dual-beam spectrophotometer
Geometries: Diffuse/8° (specular component included)
Spectrophotometer: 256 element diode array and high resolution, concave holographic grating
Sphere Diameter: 63.5 mm (2.5 in.) (diffuse/8° models)
Port Diameters/View Diameters
Diffuse/8° models: LAV 25.4 mm (1 in) illuminated/20.0 mm (0.8 in) measured
Specular Component: Included on Diffuse/8° models
Spectral Range: 400 nm - 700 nm
Spectral Resolution: < 3 nm
Effective Bandwidth: 10 nm equivalent triangular
Reporting Interval: 10 nm
Photometric Range: 0 to 150 %
Light Source: Pulsed Xenon Lamp
Flashes per Measurement: 1 flash
Lamp Life: > 1 million flashes
Measurement Time: < 1 second from button push to measurement 2 seconds from button push to data display
Minimum Interval between Measurements: 3 seconds
Standards Conformance: CIE 15:2004, ISO 7724/1, ASTM E1164, DIN 5033 Teil 7 and JIS Z 8722 Condition C
Standards Traceability: Instrument standard assignment in accordance with National Institute of Standards and Technology (NIST) following practices described in CIE Publication 44 and ASTM E259
|
|
Firmware:

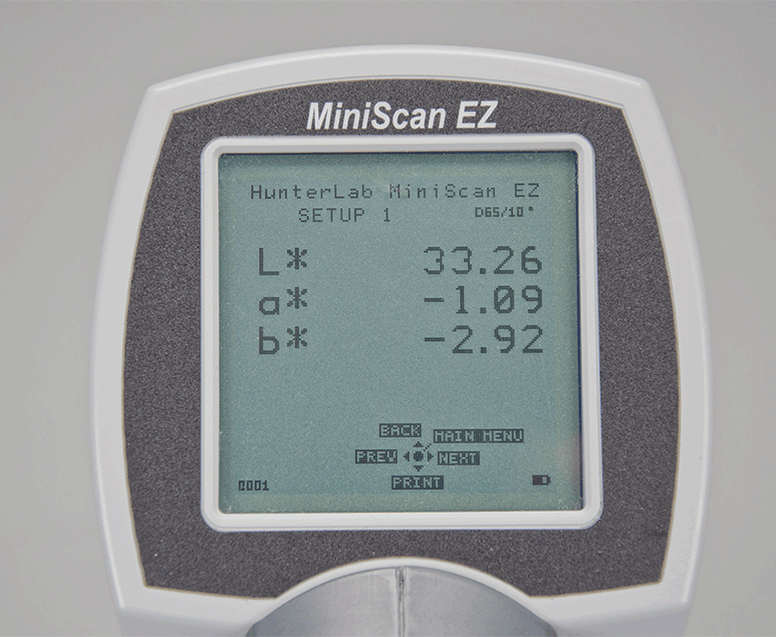

Data Views: Color Data, Color Difference Data, Tristimulus Color Plot, Spectral Data, Spectral Difference Data, Spectral Plot, Spectral Difference Plot
USB Flash Drive Features: Backup of Setups and Data, Setup Transfer to Multiple Units, Data Export to Excel
Other Features: Pass/Fail, Average Multiple Readings, Search for Closest Standard
Illuminants: A, C, D50, D55, D65, D75, F2, F7, F11
Observers: 2° and 10°
Color Scales: CIE L*a*b*, Hunter Lab, CIE L*C*h, CIE Yxy, CIE XYZ
Color Difference Scales: ∆L*a*b*, ∆Lab, ∆L*C*H, ∆Yxy, ∆XYZ
Color Difference Indices: ∆E*, ∆E, ∆C*, ∆C and ∆Ecmc
Indices and Metrics: E313 Whiteness and Tint(C/2° and D65/10°), E313 Yellowness (C/2° and D65/10°), D1925 Yellowness (C/2°), Y Brightness, Z%, 457 nm Brightness, Opacity, Color Strength Average and Single Wavelength), Gray Change, Gray Stain, Metamerism Index, Shade Number
Data Storage:
- As Standard - 100 spectral or tristimulus with Pass/Fail tolerances as Working, Physical, Numeric and Hitch
- As Sample - 750 spectral
Languages: Chinese, English, French, German, Italian, Japanese, Spanish
|
|
Firmware:
Data Views: Color Data, Color Difference Data, Tristimulus Color Plot, Spectral Data, Spectral Difference Data, Spectral Plot, Spectral Difference Plot
USB Flash Drive Features: Backup of Setups and Data, Setup Transfer to Multiple Units, Data Export to Excel
Other Features: Pass/Fail, Average Multiple Readings, Search for Closest Standard
Illuminants: A, C, D50, D55, D65, D75, F2, F7, F11
Observers: 2° and 10°
Color Scales: CIE L*a*b*, Hunter Lab, CIE L*C*h, CIE Yxy, CIE XYZ
Color Difference Scales: ∆L*a*b*, ∆Lab, ∆L*C*H, ∆Yxy, ∆XYZ Color Difference Indices: ∆E*, ∆E, ∆C*, ∆C and ∆Ecmc
Indices and Metrics: E313 Whiteness and Tint(C/2° and D65/10°), E313 Yellowness (C/2° and D65/10°), D1925 Yellowness (C/2°), Y Brightness, Z%, 457 nm Brightness, Opacity, Color Strength Average and Single Wavelength), Gray Change, Gray Stain, Metamerism Index, Shade Number
Data Storage: As Standard - 100 spectral or tristimulus with Pass/Fail tolerances as Working, Physical, Numeric and Hitch As Sample - 750 spectral
Languages: Chinese, English, French, German, Italian, Japanese, Spanish
|
|
Physical/Electrical:
Dimensions:
- Height: 13.9 cm (5.5 in.)
- Width: 10.9 cm (4.3 in.)
- Depth: 26.7 cm (10.5 in.)
- Weight: 1 kg (2.2 lbs) with batteries
Display: 5.8 cm x 5.8 cm (2.3 in. x 2.3 in.) backlit LCD, blue monochrome
Interface: USB 2.0
Power: Six AA-size alkaline batteries or nickel-metal-hydride rechargeable batteries
Battery Performance:
- With alkaline batteries approximately 4,000 measurements
- With nickel-metal-hydride batteries approximately 4,000 measurements when fully charged (varies with battery condition)
Operating Environment: 10° to 40°C (50° to 104° F), 10 % to 90 % RH, non-condensing
Storage Environment: -20° to 65°C (-5° to 150° F), 10 % to 90 % RH, non-condensing
Standard Accessories:
- NiMH batteries
- Battery charger
- Calibrated instrument white tile
- Certificate of traceability
- Black glass (45°/0° models)
- Green diagnostic tile (all instrument standards are contained in a single ergonomic holder)
- Dust cover
- Carrying case
- USB flash drive
- MiniScan EZ Users Guide
|
|
Physical/Electrical:
Dimensions:
- Height: 13.9 cm (5.5 in.)
- Width: 10.9 cm (4.3 in.)
- Depth: 26.7 cm (10.5 in.)
- Weight: 1 kg (2.2 lbs) with batteries
Display: 5.8 cm x 5.8 cm (2.3 in. x 2.3 in.) backlit LCD, blue monochrome
Interface: USB 2.0
Power: Six AA-size alkaline batteries or nickel-metal-hydride rechargeable batteries
Battery Performance:
- With alkaline batteries approximately 4,000 measurements
- With nickel-metal-hydride batteries approximately 4,000 measurements when fully charged (varies with battery condition)
Operating Environment: 10° to 40°C (50° to 104° F), 10 % to 90 % RH, non-condensing
Storage Environment: -20° to 65°C (-5° to 150° F), 10 % to 90 % RH, non-condensing
Standard Accessories:
- NiMH batteries
- Battery charger
- Calibrated instrument white tile
- Certificate of traceability
- Light trap (diffuse/8° models)
- Green diagnostic tile (all instrument standards are contained in a single ergonomic holder)
- Dust cover
- Carrying case
- USB flash drive
- MiniScan EZ Users Guide
|
