Technical:
Spectral Range: 400 nm - 700 nm
Specular Component: Excluded
Spectral Resolution: < 3 nm
Effective Bandwidth: 10 nm equivalent triangular
Reporting Interval: 10 nm
Photometric Range: 0 to 150 %
Light Source: Full spectrum, Balanced LED system array
LED Life: 5 years typical
Spectrophotometer: Sealed optics; 256-element diode array;
high resolution concave holographic grating
Displayed Height Resolution: 0.1 mm
Physical/Electrical:
Sensor Dimensions:
- Height: 56 cm (22 in)
- Width: 38 cm (15 in)
- Depth: 51 cm (20 in)
- Weight: 23 kg (50 lbs)

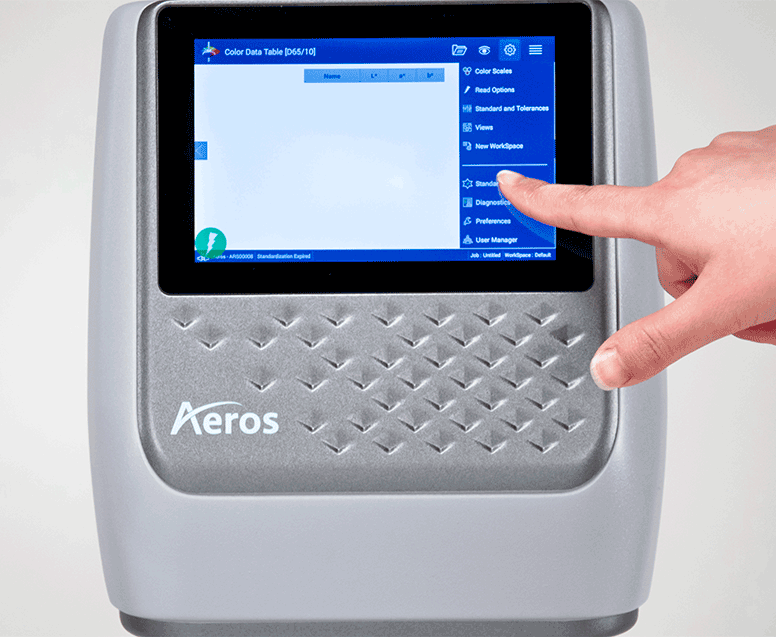

Display: Touch screen, high resolution color, 7 in, 1280 x 800
Power: Input: 100 to 240 VAC, 47 to 63 Hz to universal power supply @ 24 VDC (3.75A 90W)
Operating Environment: 4° to 38°C (40° to 100° F), 10 % to 85 % RH, noncondensing
Storage Environment: -20° to 65°C (-5° to 150° F), 10 % to 90 % RH, noncondensing
System Components:
- Calibrated white tile (NIST Certificate of Traceability) • Black glass standard
- Green diagnostic tile
- Standards Box
- 15.2 cm (6 in) pan / 2.54 cm (1 in) Depth
- 30.5 cm (12 in) pan / 2.54 cm (1 in) Depth
- 100V - 240V universal power supply
- Aeros Quick Start Guide
- Aeros User Guide on CD
Performance:
Inter-Instrument Agreement: ΔE*< 0.30 (Avg) on CCSII (BCRA) Tile Set
Colorimetric Repeatability: ΔE*< 0.025 (Max) on white tile
|
|
Measurement:

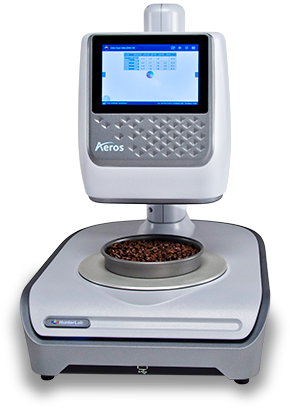

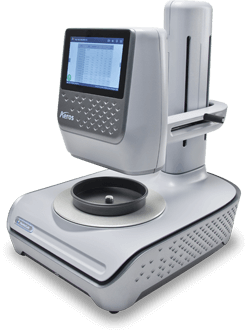

Measurement Principle: Dual-beam Non-contact Reflectance Spectrophotometer

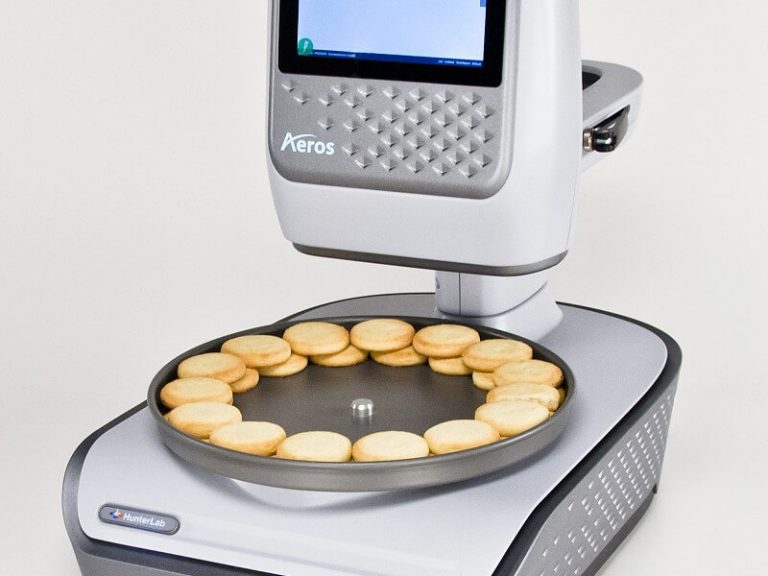

Measurement Method: Port Down; Non-Contact; Rotating platter
Maximum Sample Height: 140 mm (5.5 in.)
Measurement Duration: User selectable (5, 10, 15, 30 seconds)
Sampling Rate: 7 measurements per second
Measurements per Rotation: 35
Area Measured per Rotation: 177.25 cm(square) (27.5 in(square))
User Interface:

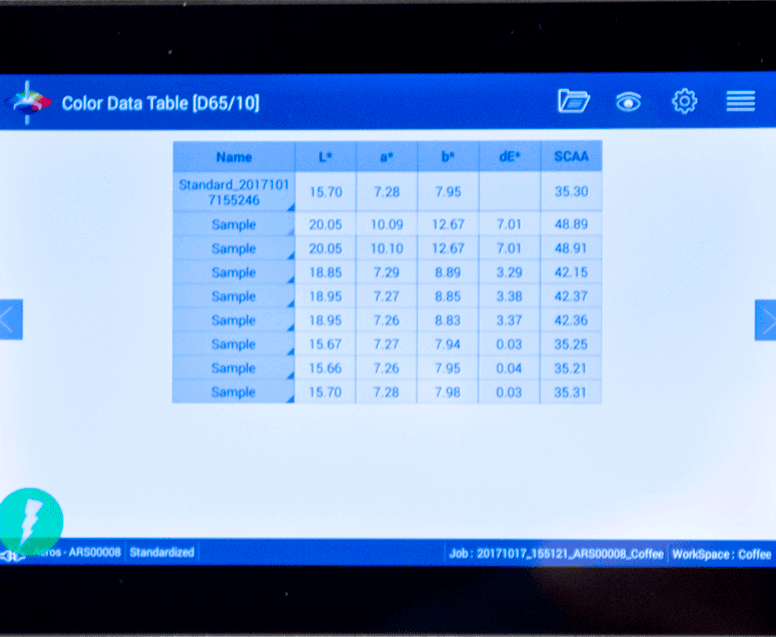

Data Views: EZ View, Color Data Table, Color Plot, Spectral Data, Spectral Plot, Trend Plot
Other Features: Pass/Fail color indication, time and date stamp, auto-naming, auto-saving, data backup and recovery
Indices and Metrics: E313 Whiteness Index, Tint, E313 Yellowness Index, D1925 Yellowness Index, Y Brightness, Z%, 457 nm Brightness, Baking Contrast Units, HCCI, SCAA
Color Scales: CIE L*a*b*, Hunter Lab, CIE L*C*h, CIE Yxy, CIE XYZ
Color Difference Scales: ΔL*a*b*, ΔLab, ΔL*C*h, ΔYxy, ΔXYZ
Color Difference Indices: ΔE*, ΔE, ΔE CMC, and ΔE 2000
Data Storage: 8 GB (> 1 million data records）
Illuminants: A, C, D50, D55, D65, D75, F02, F07, F11, TL84, ULT30, ULT35
Observers: 2° and 10°
Languages: English, Japanese, and Simplified Chinese
Display: Touch screen, High resolution 1280x800
External PC Software: Compatible with HunterLab EasyMatch QC and EasyMatch QC-Electronic Records Quality Control Software

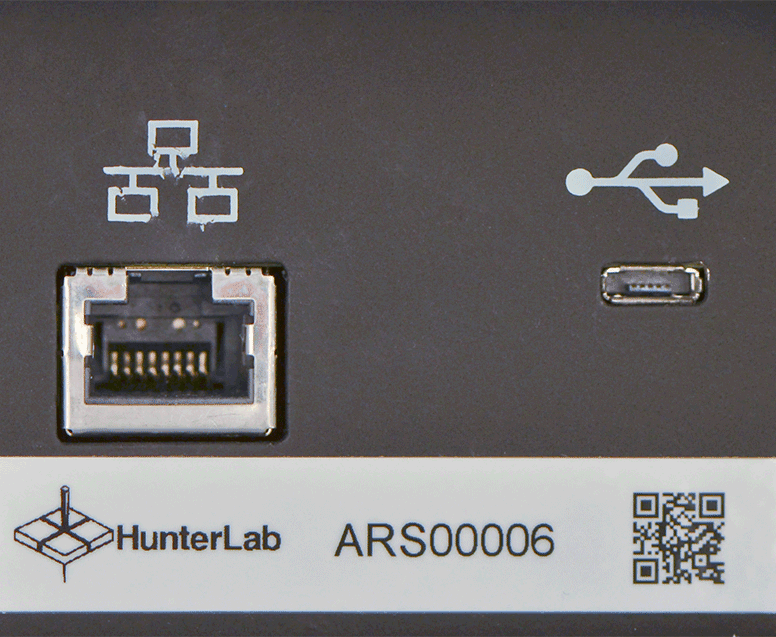

Communications I/O:
USB OTG: Connectivity to printer, keyboard, mouse
Front Panel USB: 2.0 bidirectional, data export/import via thumb drive
Ethernet RJ45: Print directly to standalone or network printers, Email directly from the instrument, Stream data to LIMS and SPC systems
Remote Access Support: Enabled via internet-based support tool
|
